Written by Donato Onofri, Senior Red Team Engineer at CrowdStrike; and Emanuele Calvelli, Threat Research Engineer at CrowdStrike

CrowdStrike researchers have identified a HijackLoader (aka IDAT Loader) sample that employs sophisticated evasion techniques to enhance the complexity of the threat. HijackLoader, an increasingly popular tool among adversaries for deploying additional payloads and tooling, continues to evolve as its developers experiment and enhance its capabilities.

In their analysis of a recent HijackLoader sample, CrowdStrike researchers discovered new techniques designed to increase the defence evasion capabilities of the loader. The malware developer used a standard process hollowing technique coupled with an additional trigger that was activated by the parent process writing to a pipe. This new approach has the potential to make defence evasion stealthier.

The second technique variation involved an uncommon combination of process doppelgänging and process hollowing techniques. This variation increases the complexity of analysis and the defence evasion capabilities of HijackLoader. Researchers also observed additional unhooking techniques used to hide malicious activity.

This blog focuses on the various evasion techniques employed by HijackLoader at multiple stages of the malware.

HijackLoader Analysis

Infection Chain Overview

The HijackLoader sample CrowdStrike analyzed implements complex multi-stage behaviour in which the first-stage executable (streaming_client.exe) deobfuscates an embedded configuration partially used for dynamic API resolution (using PEB_LDR_DATA structure without another API usage) to harden against static analysis.
Afterwards, the malware uses WinHTTP APIs to check if the system has an active internet connection by connecting to https[:]//nginx[.]org.

If the initial connectivity check succeeds, then execution continues, and it connects to a remote address to download the second-stage configuration blob. If the first URL indicated below fails, the malware iterates through the following list:

• https[:]//gcdnb[.]pbrd[.]co/images/62DGoPumeB5P.png?o=1
• https[:]//i[.]imgur[.]com/gyMFSuy.png;
• https[:]//bitbucket[.]org/bugga-oma1/sispa/downloads/574327927.png

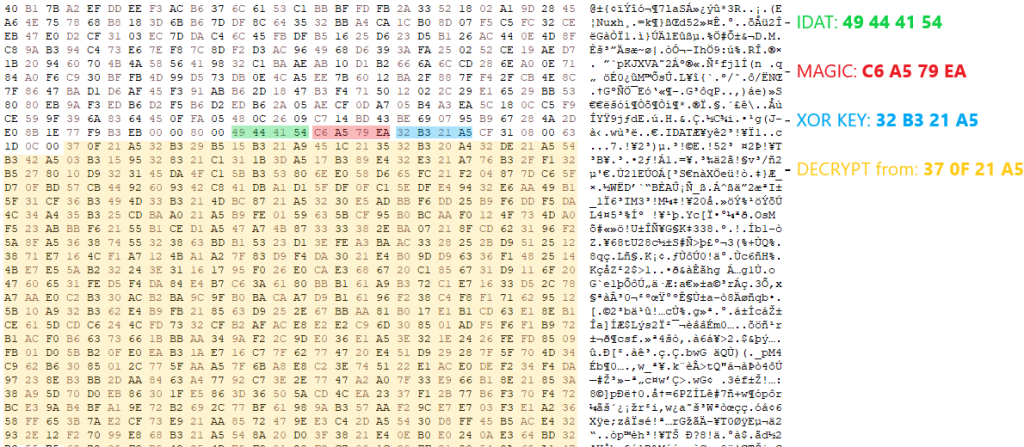

Upon successfully retrieving the second-stage configuration, the malware iterates over the downloaded buffer, checking for the initial bytes of a PNG header. It then proceeds to search for the magic value  C6 A5 79 EA, which precedes the XOR key (32 B3 21 A5 in this sample) used to decrypt the rest of the configuration blob.

Following XOR decryption, the configuration undergoes decompression using the RtlDecompressBuffer API with COMPRESSION_FORMAT_LZNT1. After decompressing the configuration, the malware loads a legitimate Windows DLL specified in the configuration blob (in this sample, C:\Windows\SysWOW64\mshtml.dll).

The second-stage, position-independent shellcode retrieved from the configuration blob is written to the .text section of the newly loaded DLL before being executed. The HijackLoader second-stage, position-independent shellcode then performs some evasion activities (further detailed below) to bypass user mode hooks using Heaven’s Gate and injects subsequent shellcode into cmd.exe.The injection of the third-stage shellcode is accomplished via a variation of process hollowing that results in an injected hollowed mshtml.dll into the newly spawned cmd.exe child process.

The third-stage shellcode implements a user mode hook bypass before injecting the final payload (a Cobalt Strike beacon for this sample) into the child process logagent.exe. The injection mechanism used by the third-stage shellcode leverages the following techniques:

• Process Doppelgänging Primitives: This technique is used to hollow a Transacted Section(dll) in the remote process to contain the final payload.
• Process/DLL Hollowing: This technique is used to inject the fourth-stage shellcode that is responsible for performing evasion before passing execution to the final payload within the transacted section from the previous step.

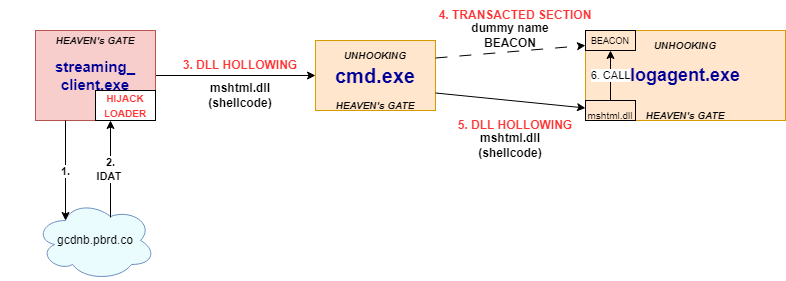

The figure below, details the attack path exhibited by this HijackLoader variant.

Main Evasion Techniques Used by HijackLoader and Shellcode

The primary evasion techniques employed by the HijackLoader include hook bypass methods such as Heaven’s Gate and unhooking by remapping system DLLs monitored by security products. Additionally, the malware implements variations of process hollowing and an injection technique that leverages transacted hollowing, which combines the transacted section and process doppelgänging techniques with DLL hollowing.

Like other variants of HijackLoader, this sample implements a user mode hook bypass using Heaven’s Gate (when run in SysWOW64) — this is similar to existing (x64_Syscall function) implementations. This implementation of Heaven’s Gate is a powerful technique that leads to evading user mode hooks placed in SysWOW64 ntdll.dll by directly calling the syscall instruction in the x64 version of ntdll.

Each call to Heaven’s Gate uses the following as arguments:

• The syscall number
• The number of parameters of the syscall
• The parameters (according to the syscall)

This variation of the shellcode incorporates an additional hook bypass mechanism to elude any user mode hooks that security products may have placed in the x64 ntdll. These hooks are typically used for monitoring both the x32 and x64 ntdll. During this stage, the malware remaps the .text section of x64 ntdll by using Heaven’s Gate to call NtWriteVirtualMemory and NtProtectVirtualMemory to replace the in-memory mapped ntdll with the .text from a fresh ntdll read from the file C:\windows\system32\ntdll.dll. This unhooking technique is also used on the process hosting the final Cobalt Strike payload (logagent.exe) in a final attempt to evade detection.

Process Hollowing Variation

To inject the subsequent shellcode into the child process cmd.exe, the malware utilizes common process hollowing techniques. This involves mapping the legitimate Windows DLL mshtml.dll into the target process and then replacing its .text section with shellcode. An additional step necessary to trigger the execution of the remote shellcode is detailed in a later section.

To set up the hollowing, the sample creates two pipes that are used to redirect the Standard Input and the Standard Output of the child process (specified in the aforementioned configuration blob, C:\windows\syswow64\cmd.exe) by placing the pipes’ handles in a STARTUPINFOW structure spawned with CreateProcessW API.

One key distinction between this implementation and the typical “standard” process hollowing can be observed here: In standard process hollowing, the child process is usually created in a suspended state. In this case, the child is not explicitly created in a suspended state, making it appear less suspicious. Since the child process is waiting for an input from the pipe created previously, its execution is hanging on receiving data from it. Essentially, we can call this an interactive process hollowing variation.

As a result, the newly spawned cmd.exe will read input from the STDIN pipe, effectively waiting for new commands. At this point, its EIP (Extended Instruction Pointer) is directed toward the return from the NtReadFile syscall. The following section details the steps taken by the second-stage shellcode to set up the child process cmd.exe ultimately used to perform the subsequent injections used to execute the final payload.

The parent process streaming_client.exe initiates an NtDelayExecution to sleep, waiting for cmd.exe to finish loading. Afterwards, it reads the legitimate Windows DLL mshtml.dll from the file system and proceeds to load this library into cmd.exe as a shared section. This is accomplished using the Heaven’s Gate technique for:

• Creating a shared section object using  NtCreateSection
• Mapping that section in the remote exe using NtMapViewOfSection

It then replaces the .text section of the mshtml DLL with malicious shellcode by using:

• Heaven’s Gate to call  NtProtectVirtualMemory on exe to set RWX permissions on the .text section of the previously mapped section mshtml.dll
• Heaven’s Gate to call NtWriteVirtualMemoryon the DLL’s .text section to stomp the module and write the third-stage shellcode

Finally, to trigger the execution of the remote-injected shellcode, the malware uses:

• Heaven’s Gate to suspend (NtSuspendThread) the remote main thread
• A new CONTEXT (by using NtGetContextThread and NtSetContextThread) to modify the EIP to point to the previously written shellcode
• Heaven’s Gate to resume (NtResumeThread) the remote main thread of exe

However, because cmd.exe is waiting for user input from the STDINPUT pipe, the injected shellcode in the new process isn’t executed upon the resumption of the thread. The loader must take an additional step:

• The parent process exe needs to write (WriteFile) \r\n string to the STDINPUT pipe created previously to send an input to cmd.exe after calling NtResumeThread. This effectively resumes execution of the primary thread at the shellcode’s entry point in the child process cmd.exe.

Interactive Process Hollowing Variation: Tradecraft Analysis

We have successfully replicated the threadless process hollowing technique to understand how the pipes trigger it. Once the shellcode has been written as described, it needs to be activated. This activation is based on the concept that when a program makes a syscall, the thread waits for the kernel to return a value.

In essence, the interactive process hollowing technique involves the following steps:

• CreateProcess: This step involves spawning the exe process to inject the malicious code by redirecting STDIN and STDOUT to pipes. Notably, this process isn’t suspended, making it appear less suspicious. Waiting to read input from the pipe, the NtReadFile syscall sets its main thread’s state to Waiting and _KWAIT_REASON to Executive, signifying that it’s awaiting the execution of kernel code operations and their return.
• WriteProcessMemory: This is where the shellcode is written into the exe child process.
• SetThreadContext: In this phase, the parent sets the conditions to redirect the execution flow of the exe child process to the previously written shellcode’s address by modifying the EIP/RIP in the remote thread CONTEXT.
• WriteFile: Here, data is written to the STDIN pipe, sending an input to the exe process. This action resumes the execution of the child process from the NtReadFile operation, thus triggering the execution of the shellcode. Before returning to user space, the kernel reads and restores the values saved in the _KTRAP_FRAME structure (containing the EIP/RIP register value) to resume from where the syscall was called. By modifying the CONTEXT in the previous step, the loader hijacks the resuming of the execution toward the shellcode address without the need to suspend and resume the thread, which this technique usually requires.

Transacted Hollowing² (Transacted Section/Doppelgänger + Hollowing)

The malware writes the final payload in the child process logagent.exe spawned by the third-stage shellcode in cmd.exe by creating a transacted section to be mapped in the remote process. Subsequently, the malware injects a fourth-stage shellcode into logagent.exe by loading and hollowing another instance of mshtml.dll into the target process. The injected fourth-stage shellcode performs the aforementioned hook bypass technique before executing the final payload previously allocated by the transacted section.

Transacted Section Hollowing

Similarly to process doppelgänging, the goal of a transacted section is to create a stealthy malicious section inside a remote process by overwriting the memory of the legitimate process with a transaction. In this sample, the third-stage shellcode executed inside cmd.exe places a malicious transacted section used to host the final payload in the target child process logagent.exe. The shellcode uses the following:

• NtCreateTransactionto create a transaction
• RtlSetCurrentTransaction and CreateFileW with a dummy file name to replace the documented  CreateFileTransactedW
• Heaven’s Gate to call NtWriteFilein a loop, writing the final shellcode to the file in 1,024-byte chunks
• Creation of a section backed by that file (Heaven’s Gate call NtCreateSection)
• A rollback of the previously created section by using Heaven’s Gate to call  NtRollbackTransaction

Existing similar implementations have publicly been observed in this project that implements transaction hollowing.

Once the transacted section has been created, the shellcode generates a function stub at runtime to hide from static analysis. This stub contains a call to theCreateProcessW API to spawn a suspended child process logagent.exe (c50bffbef786eb689358c63fc0585792d174c5e281499f12035afa1ce2ce19c8) that was previously dropped by cmd.exe  under the %TEMP% folder.

After the target process has been created, the sample uses Heaven’s Gate to:

• Read its PEBby calling NtReadVirtualMemory to retrieve its base address (0x400000)
• Unmap the exe image in the logagent.exe process by using  NtUnMapViewofSection
• Hollow the previously created transacted section inside the remote process by remapping the section at the same base address (0x400000) with NtMapViewofSection

Process Hollowing

After the third-stage shellcode within cmd.exe injects the final Cobalt Strike payload inside the transacted section of the logagent.exe process, it continues by process hollowing the target process to write the fourth shellcode stage ultimately used to execute the final payload (loaded in the transacted section) in the remote process. The third-stage shellcode maps the legitimate Windows DLL C:\Windows\SysWOW64\mshtml.dll in the target process before replacing its .text with the fourth-stage shellcode and executing it via NtResumeThread.

This additional fourth-stage shellcode written to logagent.exe performs similar evasion activities to the third-stage shellcode executed in cmd.exe (as indicated in the hook bypass section) before passing execution to the final payload.

Indicators of Compromise (IOCs)

MITRE ATT&CK Framework

The following table maps reported HijackLoader tactics, techniques and procedures (TTPs) to the MITRE ATT&CK framework.
